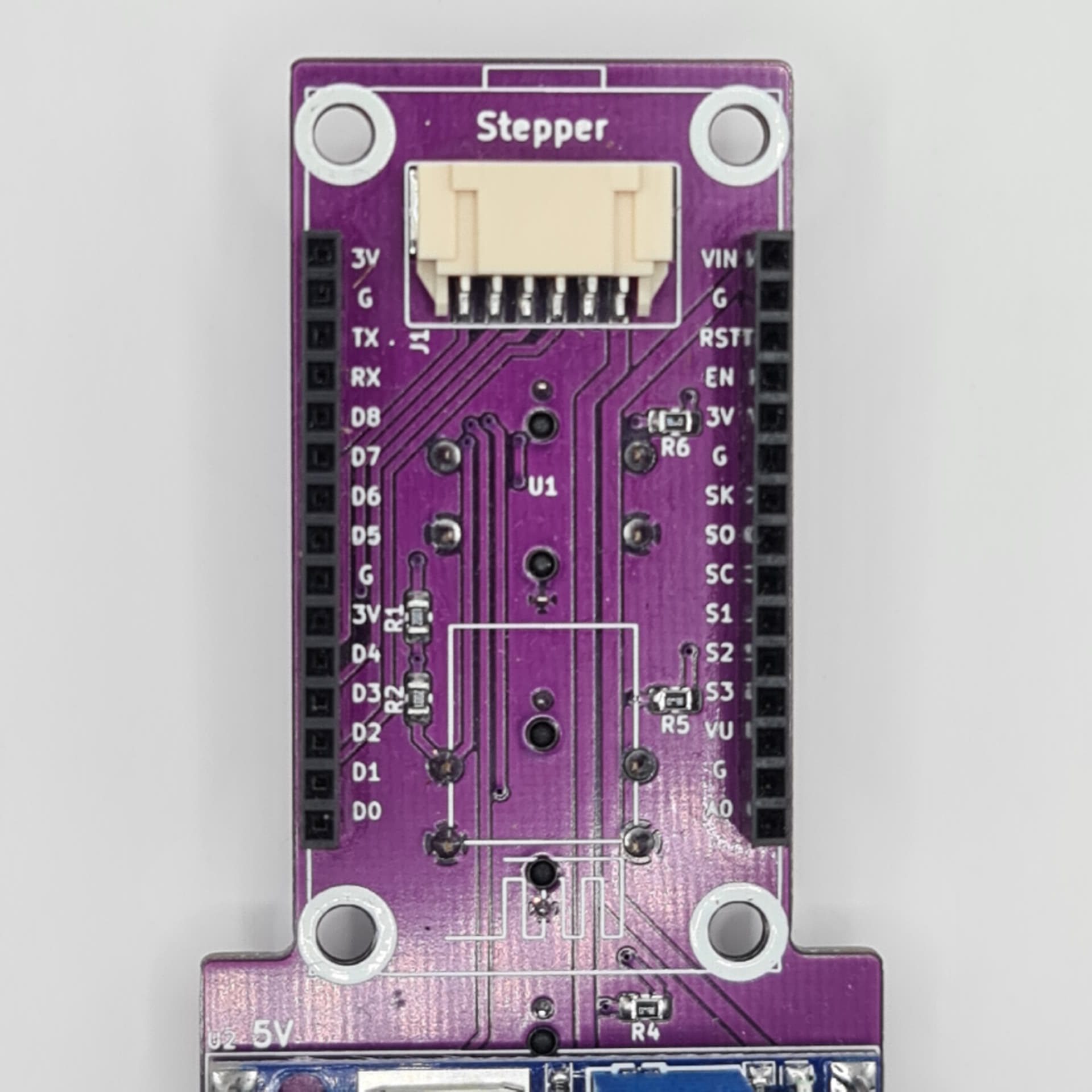

Smart Blind PCB

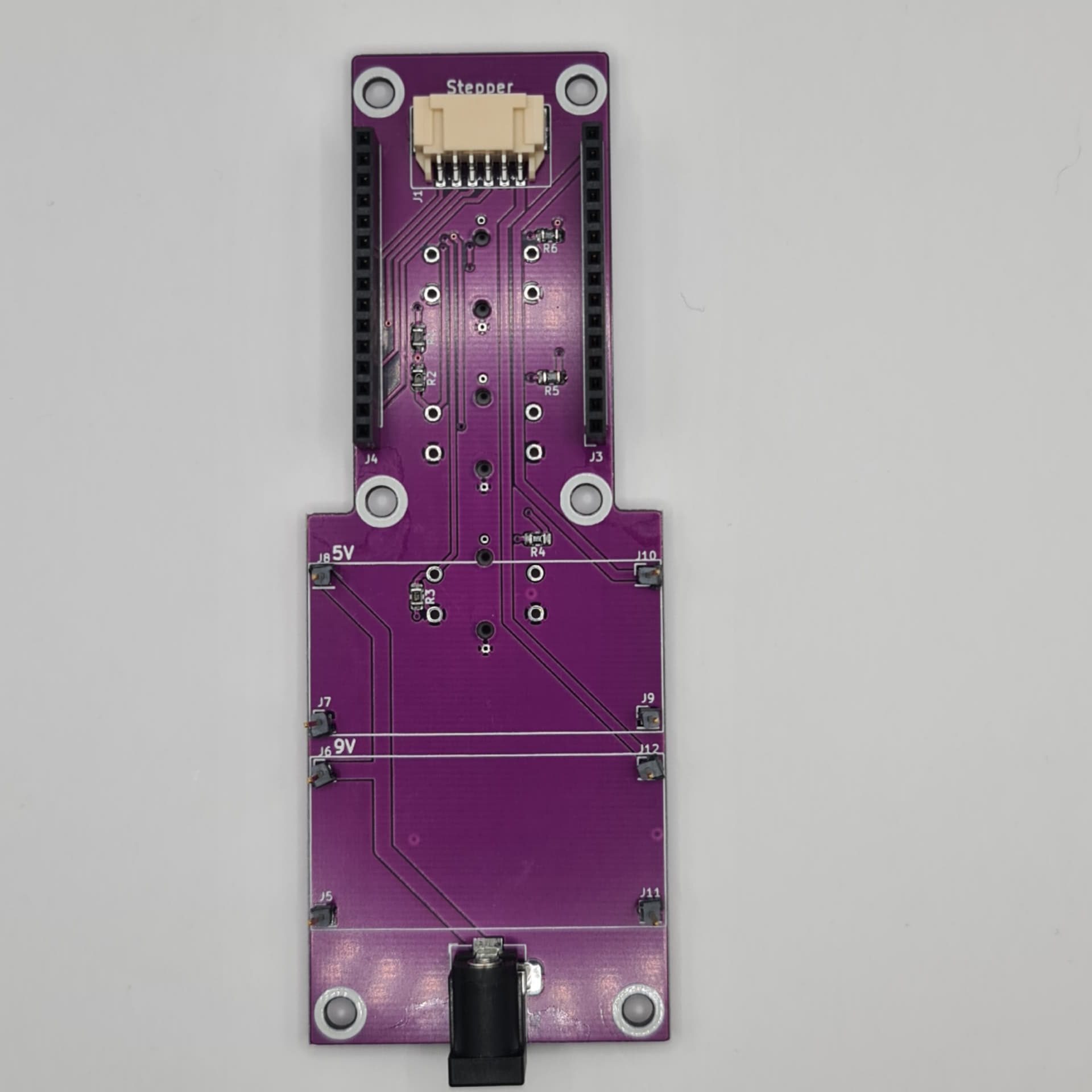

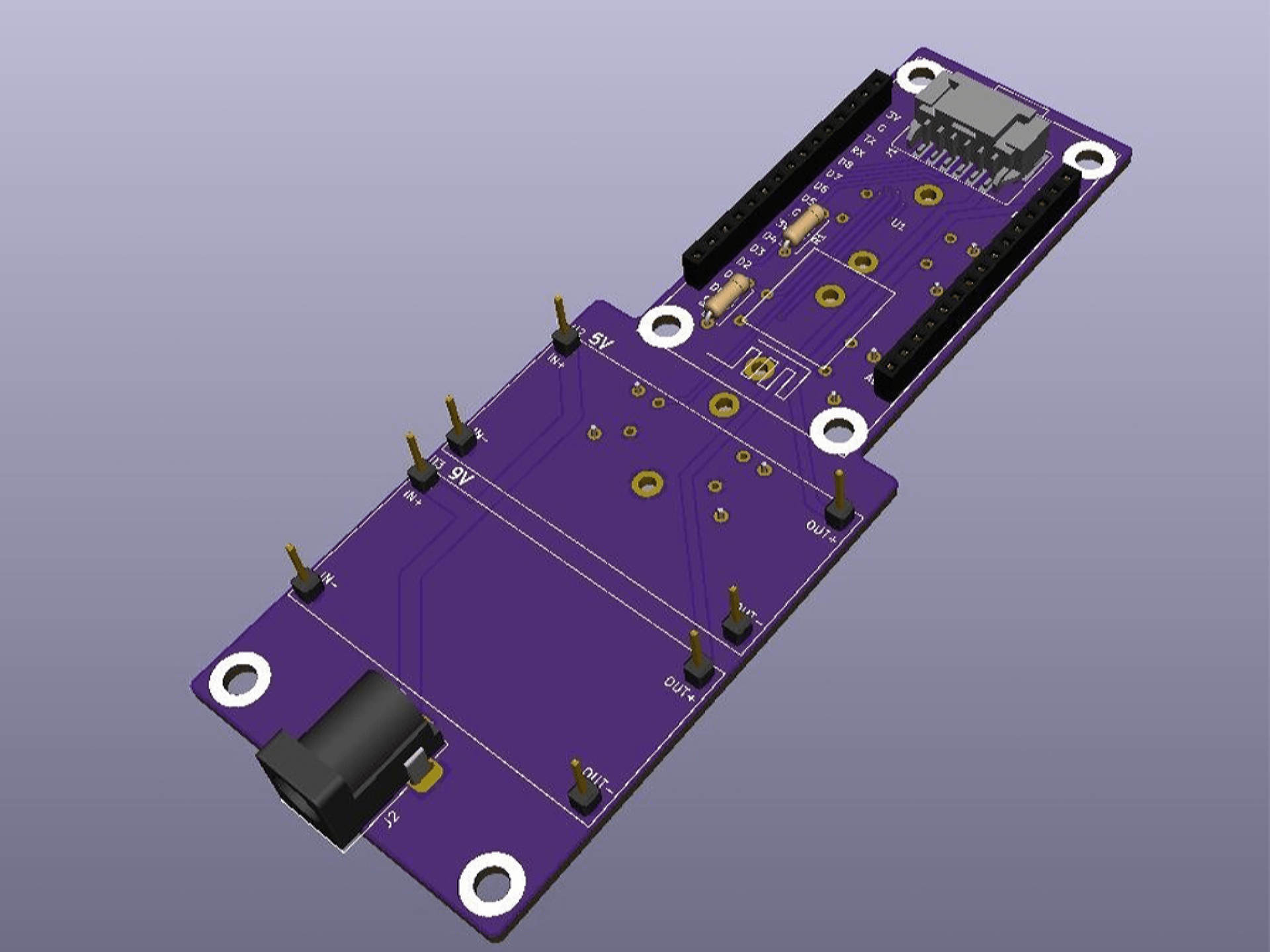

Our Smart Blind PCB is designed to make putting together your home smart blind as simple and painless as possible,

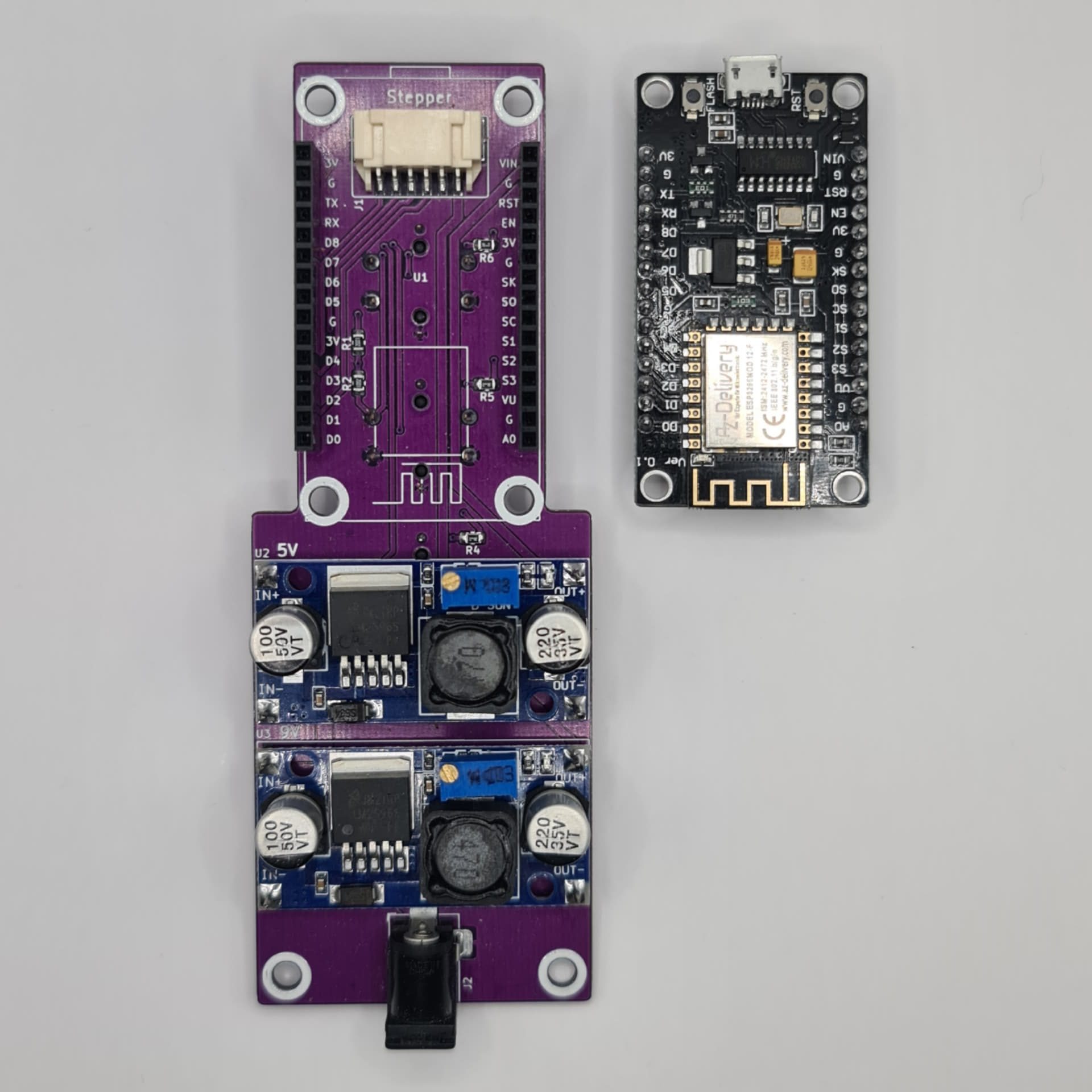

It has space for a Nodemcu V3 on headers at the top.

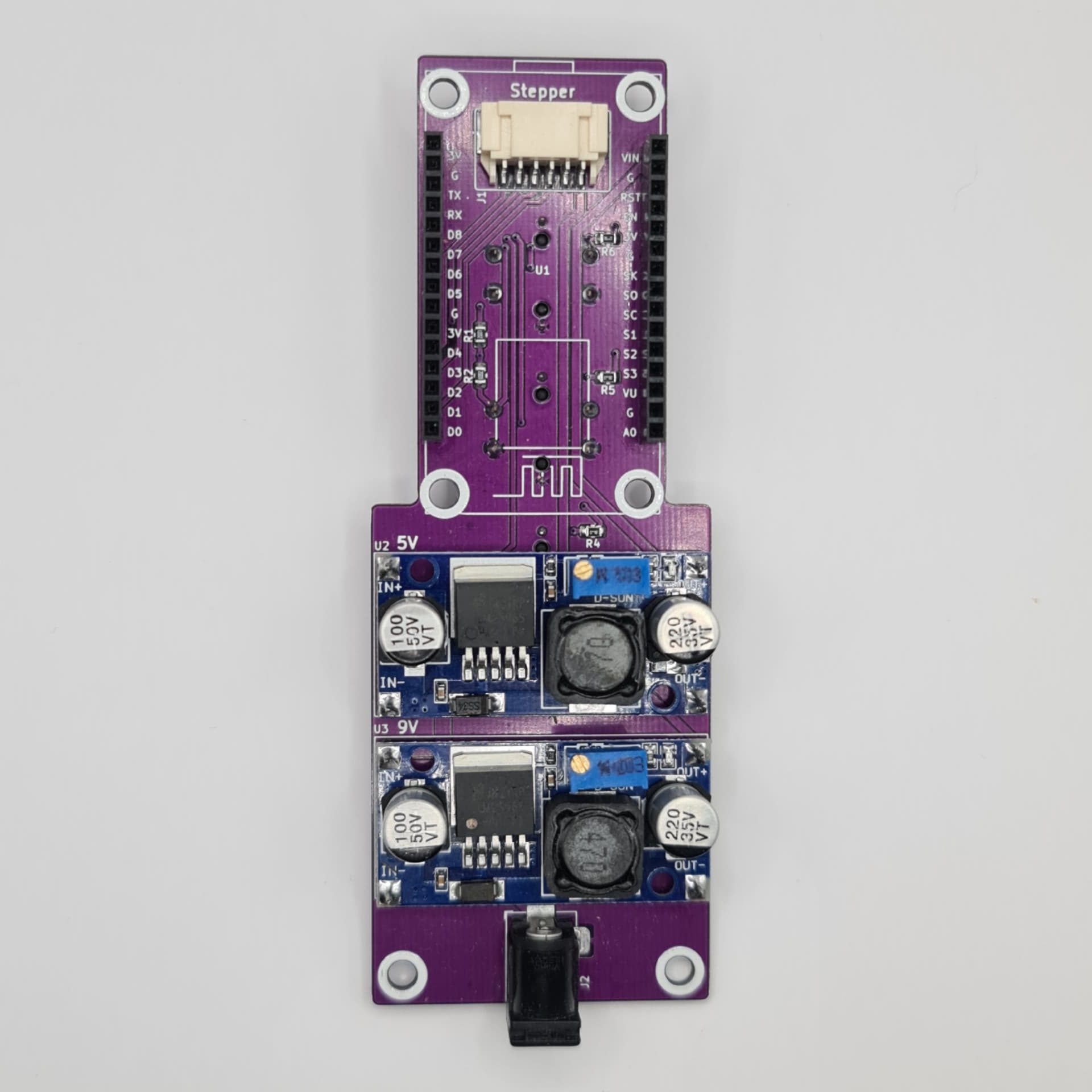

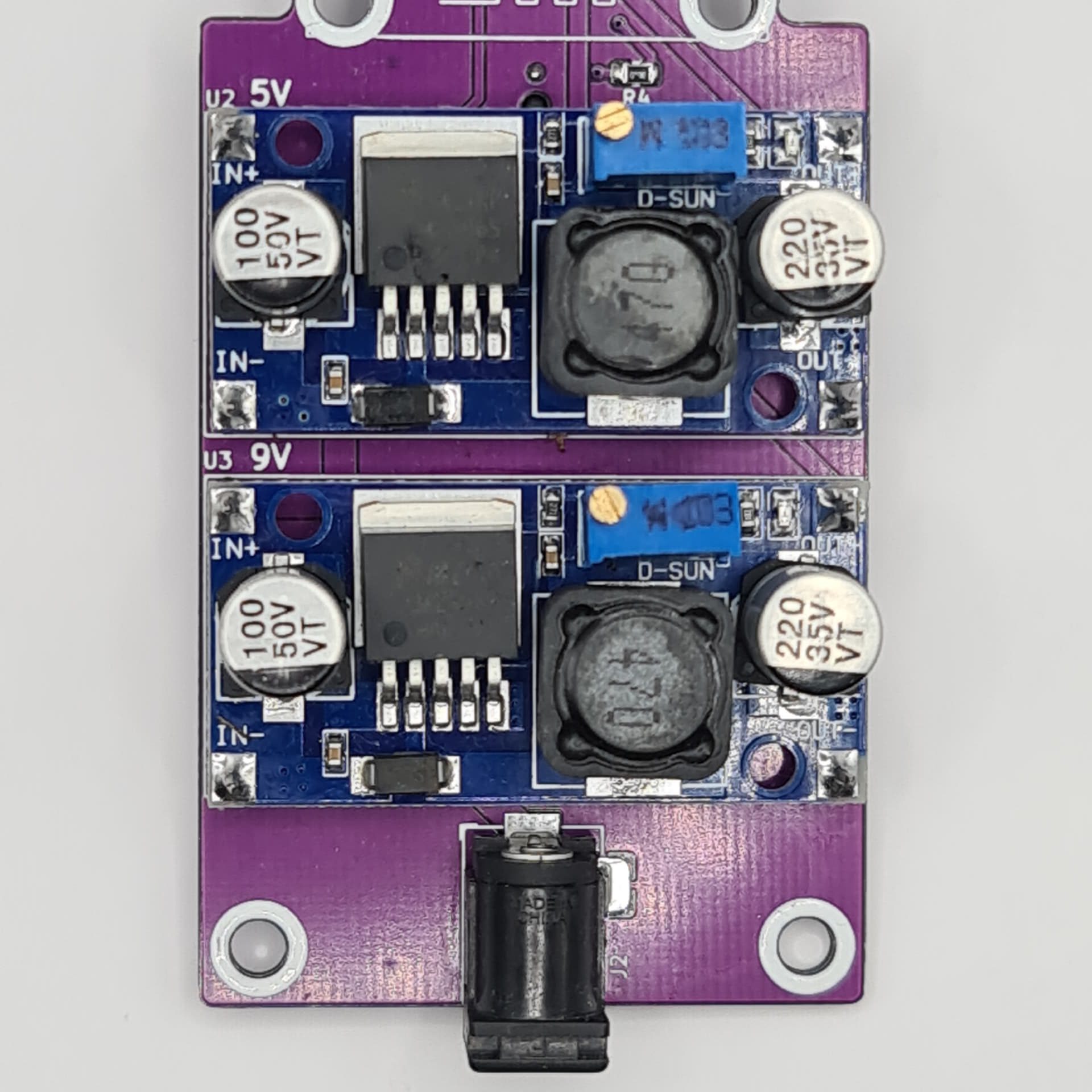

Space for Buck converters to step the power down for the Nodemcu and the stepper motor driver.

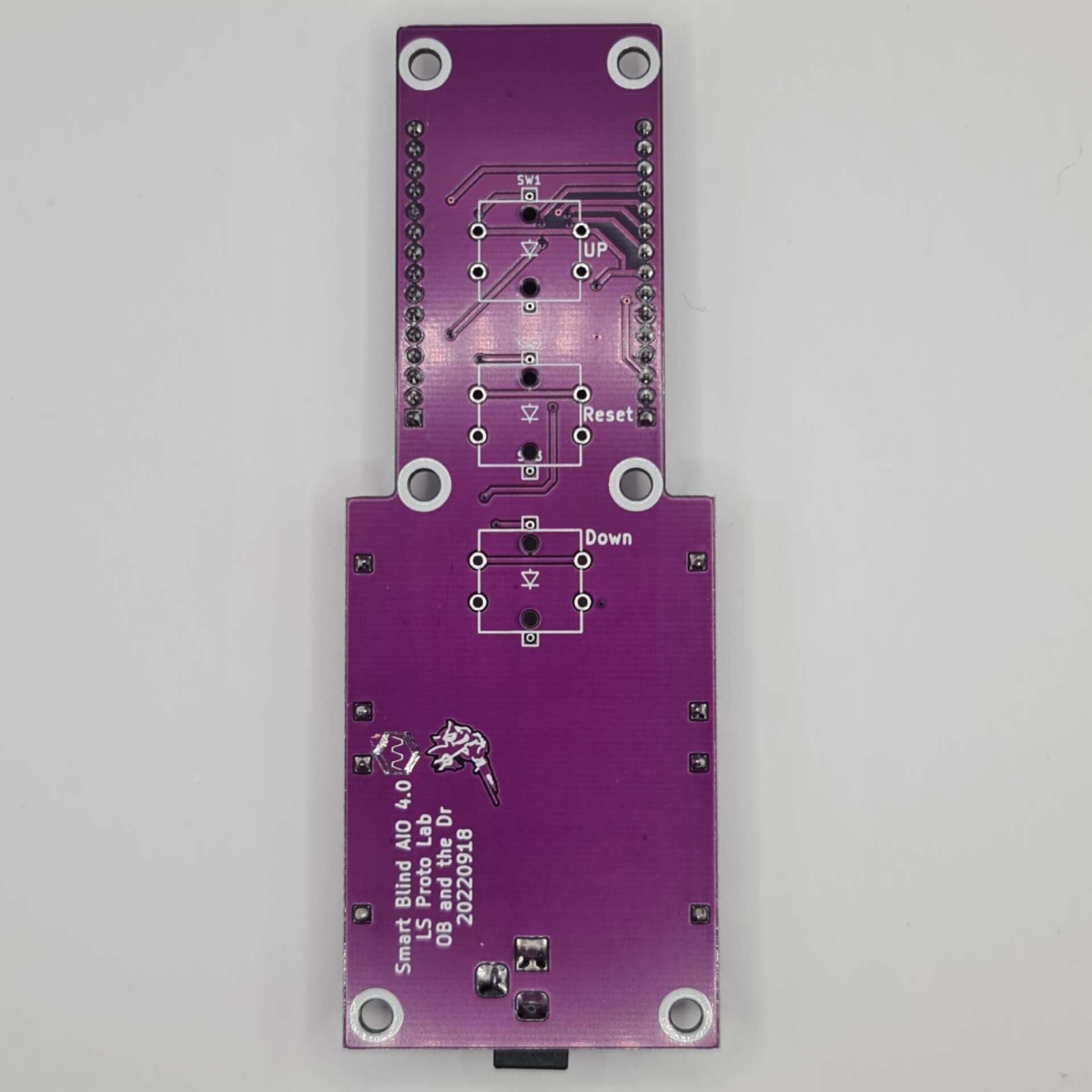

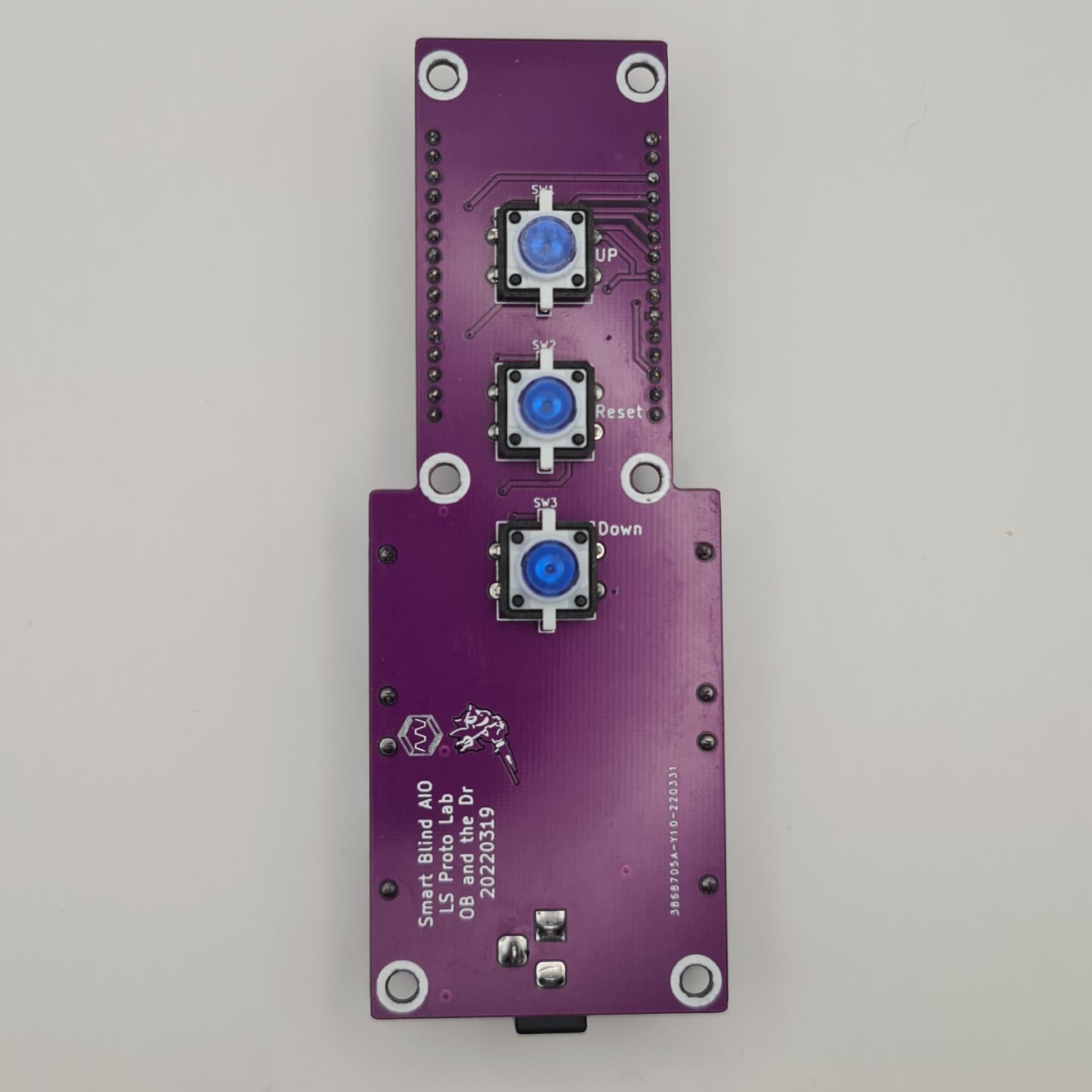

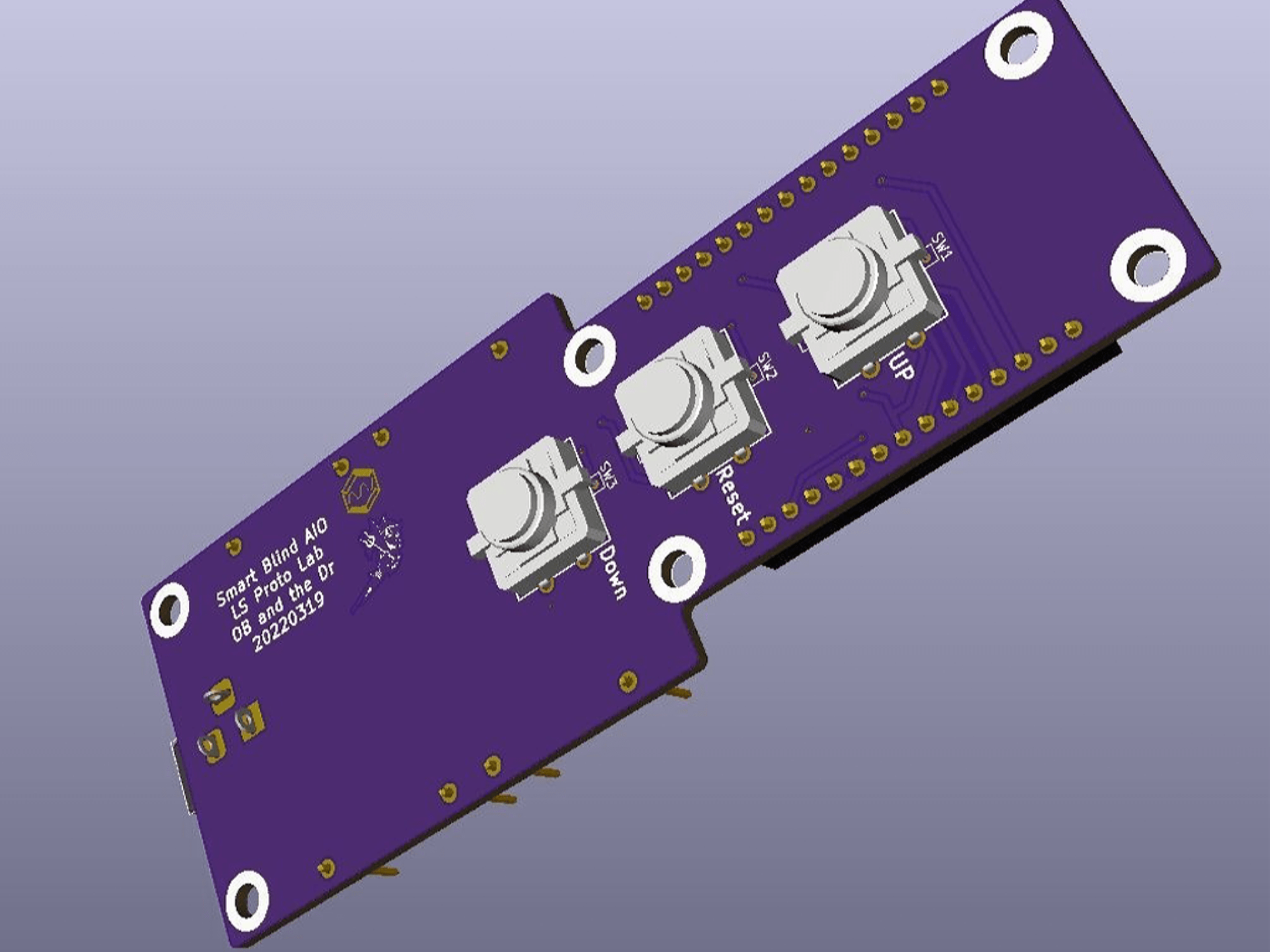

Button mounting pads to control the blind manually vs using MQTT or the web interface.

This product is the Smartblind PCB only and does not include the DC converters, Buttons or NodeMCU V3



Additional information

With DC to DC Converters

With 2x DC to DC Buck Conbverters, Without DC to DC Buck Converters

With NodeMCU V3

With NodeMCU V3, No NodeMCU V3
